May 28th, 2024.

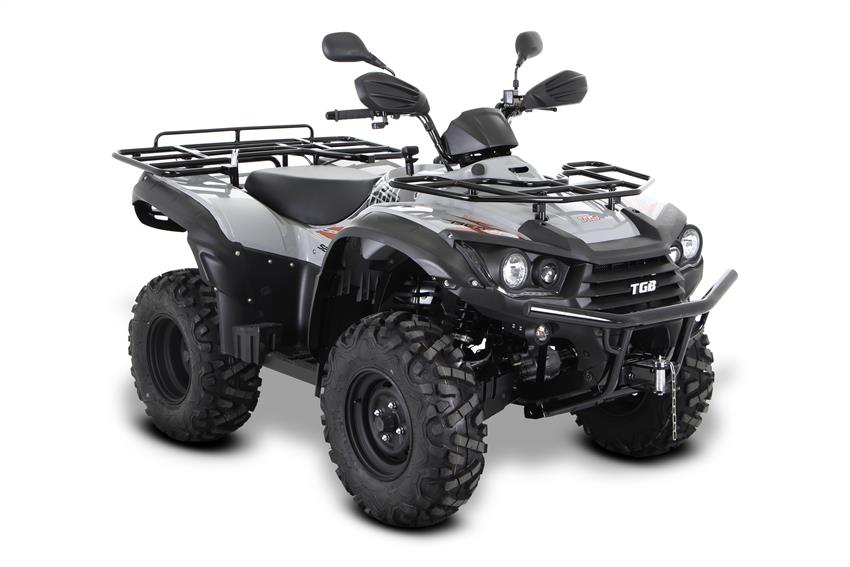

The TGB Blade 520 boasts a long list of essential features fitted as standard all at an attractive retail price and, underlining its belief in the quality of the products, the UK distributor Dualways provides a confidence-inspiring five-year limited warranty on all its TGB models.

Whether tackling challenging terrain to reach a hard-to-get-to situation, making light work of daily chores, the Blade 520 is a valuable addition to any work environment. It is powered by TGB’s tried-and-tested, high-torque, 503cc four-stroke, single-cylinder petrol engine, equipped with electronic fuel injection. The Blade produces 40hp in off-road specification and runs through a selectable two/four-wheel drive.

The TGB package includes a digital dash, front and rear racks, fully-adjustable front suspension, a winch, and a tow-bar with 850kg pulling capacity. It is homologated as T3, which means it can be registered for road use.

The Blade 520SL EPS is available in grey and green

SRP: £6999.00 including VAT. 0% Interest free credit scheme available subject to terms and conditions.


Bore & stroke; 92 X 75.6 mm
Capacity; 503cc
Clutch; Automatic -CVT
Compression ratio; 10.2
Cooling; Liquid-cooled
Drive type; 2/4 wheel drive selectable
Transmission type; V-belt CVT automatic
Electric power steering; 520SL EPS
Electrical outlet connector; DC 12V 10A 120W
Engine type; 4-stroke single cylinder
Final drive; Shaft
Front/rear brakes; Disc
Front/rear shock absorbers; Preload adjustable hydraulic
Front suspension; Fully adjustable
Fuel system; Electronic Fuel Injection
Fuel tank capacity; 18 litres
Gearbox; Automatic
Ground clearance; 305mm
Max power; 40HP (off-road)
Max torque; 46.1 NM
Overall height; 1502mm
Overall length; 2120mm
Overall width; 1240mm
Rear suspension; Swing arm
Start type; Electric
Tow hitch; Yes
Unbraked towing capacity; 850kg
Winch; Yes

Warranty; 5-Year Manufacturer Limited Warranty.

0% Interest free credit scheme available subject to terms and conditions.

For further information contact the UK distributor Dualways on 01623 708607 or visit
